Model No: MF-H2

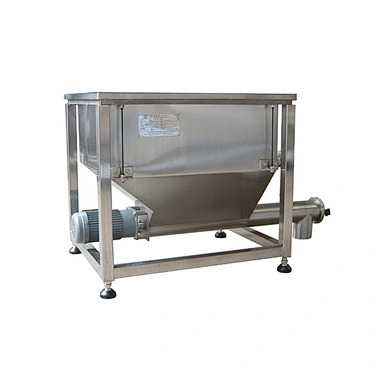

MF-H2 Horizontal Screw Conveyor(With hopper)
Power supply:3P AC208-415V 50/60Hz
Hopper Volume:Standard 150L, 50~2000L could be designed and manufactured.
Conveying Length:Standard 0.8M, 0.4~6M could be designed and manufactured.
Fully stainless steel structure, contact parts SS304.
Remark: Other Charging Capacity could be designed and manufactured.
Hopper Volume:Standard 150L, 50~2000L could be designed and manufactured.
Conveying Length:Standard 0.8M, 0.4~6M could be designed and manufactured.
Fully stainless steel structure, contact parts SS304.
Remark: Other Charging Capacity could be designed and manufactured.
Quantity :
Technical Parameters
| Model | MF-H2-1K | MF-H2-2K | MF-H2-3K | MF-H2-5K | MF-H2-7K | MF-H2-8K | MF-H2-12K |
| Conveying Capacity | 1m³/h | 2m³/h | 3m³/h | 5m³/h | 7m³/h | 8m³/h | 12m³/h |
| Diameter of pipe | φ89 | φ102 | φ114 | φ141 | φ159 | φ168 | φ219 |
| Total power | 0.4KW | 0.4KW | 0.55KW | 0.75KW | 0.75KW | 0.75KW | 1.5KW |
| Total Weight | 75kg | 80kg | 90kg | 100kg | 110kg | 120kg | 150kg |
| Hopper Volume | 150L | 150L | 150L | 150L | 150L | 150L | 150L |
