Model No: MF-UH1

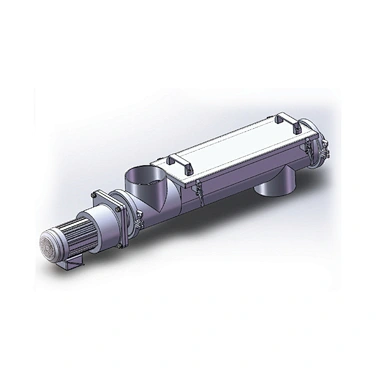

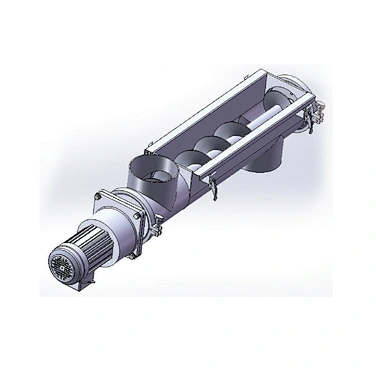

MF-UH1U-Shape Horizontal Screw Conveyor
Power supply: 3P AC208-415V 50/60Hz
Conveying length: Standard 0.8M, 0.4~6M could be designed and manufactured.
Fully stainless steel structure,contact parts SS304.
Other Charging Capacity could be designed and manufactured.
U shape trough, there is stainless steel cap on the trough hinged by buckle with
good sealing in the middle. Easy to remove and clean.
Conveying length: Standard 0.8M, 0.4~6M could be designed and manufactured.
Fully stainless steel structure,contact parts SS304.
Other Charging Capacity could be designed and manufactured.
U shape trough, there is stainless steel cap on the trough hinged by buckle with
good sealing in the middle. Easy to remove and clean.
Quantity :
Technical Parameters
| Model | MF-UH1-1K | MF-UH1-2K | MF-UH1-3K | MF-UH1-5K | MF-UH1-7K | MF-UH1-8K | MF-UH1-12K |
| Conveying Capacity | 1m³/h | 2m³/h | 3m³/h | 5m³/h | 7m³/h | 8m³/h | 12m³/h |
| Diameter of pipe | φ89 | φ102 | φ114 | φ141 | φ159 | φ168 | φ219 |
| Total power | 0.4KW | 0.4KW | 0.55KW | 0.75KW | 0.75KW | 0.75KW | 1.1KW |
| Total Weight | 45kg | 50kg | 60kg | 70kg | 80kg | 90kg | 120kg |
