Model No: MFA-L12

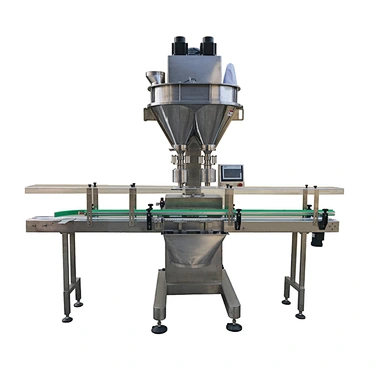

Automatic Auger filing machine(1 lane 2filers)
This Machine is a complete, economical solution to your filling production line requirements. can measuring and filling powder and granular. It consists of the Two Filling Head, an independent motorized chain conveyor mounted on a sturdy, stable frame base, and all necessary accessories to reliably move and position containers for filling, dispense the required amount of product, then quickly move the filled containers away to other equipment in your line (e.g., cappers, labelers, etc.).it fits more to the fluidic or low-fluidity materials, like milk powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on.
Quantity :
Main features
- Stainless steel structure; The horizontal split hopper could be washed easily without tools.
- Servo motor drive screw.
- PLC, Touch screen and weighing module control.
- To save all product's parameter formula for later use, save 10 sets at most. Replacing the auger parts, it is suitable for material from super thin powder to granule.
- Equipped with height adjusting handwheel, it is convenient to adjust the height of the whole machine.
- With pneumatic bottle lifting and vibration function.
- Optional function:Dosing by weighing, this mode high accuracy, slow speed.
Technical Parameters
| Model | MFA-L12-S | MFA-L12-M |
| Working position | 1lane +2 filers | 1lane+2 fillers |
| Filing Weight | 1 -500g | 10-5000g |
| Filling Accuracy | 1-10g, ≤±3-5%; 10-100g, ≤±2%; 100- 500g, ≤±1% | <100g, ≤±2%; 100- 500g, ≤±1%; >500 g, ≤±0.5% |
| Filling Speed | 40-60 bottles/min(Wide-mouth bottle) | 40-60 bottles/min(Wide-mouth bottle) |
| Power Supply | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz |
| Compressed air | 6 kg/cm² 0.05m³/min | 6 kg/cm² 0.05m³/min |
| Total power | 2.02Kw | 2.87Kw |
| Total weight | 240kg | 400kg |
| Overall Dimension | 1500×730×1986mm | 2000x973x2150mm |
| Hopper Volume | 51L | 83L |
