Model No: MFA-W1

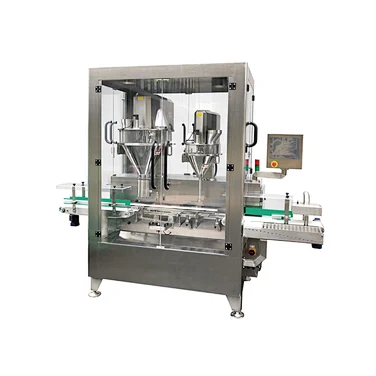

Automatic filling machine (1 line main & assist filling)
This series machine is a new-desianed that we make it on placing the old turnplate feeding on one side. Dual auger filling within one line main-assist fillers and the originated feeding system can keep the high-precision and take off the tiring cleaning of the turntable. It can do the accurate weighing & filling work, and also could combined with other machines to buildup a whole can-packing production line. This machine could be used in filling milk powder, albumen powder condiment, dextrose, rice four, cocoa powder, solid drink, and so on.
Quantity :
Main features
- Dual fillers, Main filling, bag clamping & weighing and supplementary filling ensure high canning accuracy.
- Stainless steel structure; Quick disconnecting or split hopper could be washed easily without tools.
- Servo motor drive screw.
- PLC & touch screen make it be easy of operation.
- The weighing system with high reaction speed ensures the realization of high packaging speed and high precision.
- Save the parameter of different filling weight for different materials. To save 10 sets at most
- Replacing the auger parts, it is suitable for material from super thin powder to granule.
Technical Parameters
| Model | MFA-W1-D140 | MFA-W1-D210 |
| Dosing mode | Dual filler filing with online weighing | Dual filler filing with online weighing |
| Filing Weight | 100 -1500g | 100-5000g |
| Container Size | Ф60-140mm; H 60-260mm | Ф60-210mm; H 60-350mm |
| Filling Accuracy | 100-500g, ≤±1g; 500g-1000g, ≤±2g; ≥1000g, ≤±3g | 100-500g, ≤±1g; 500g-1000g, ≤±2g; ≥1000g, ≤±3-4g |
| Filling Speed | Above 45 cans/min(#502) | Above 35 cans/min(#603) |
| Power Supply | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz |
| Total power | 3.4 kw | 4.75 kw |
| Total weight | 450kg | 650kg |
| Air Supply | 6kg/cm² 0.2cbm/min | 6kg/cm² 0.2cbm/min |
| Overall Dimension | 2650×1075×2683mm | 3200×1170×2920mm |
| Hopper Volume | 50L(Main) 11L(Assist) | 75L(Main) 25L(Assist) |
