Model No: MFP-W1

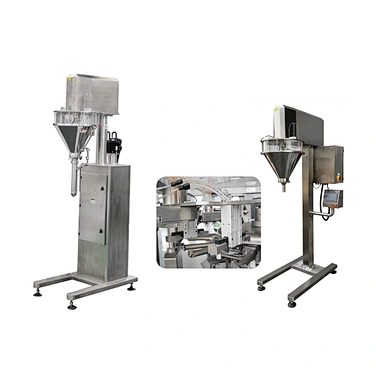

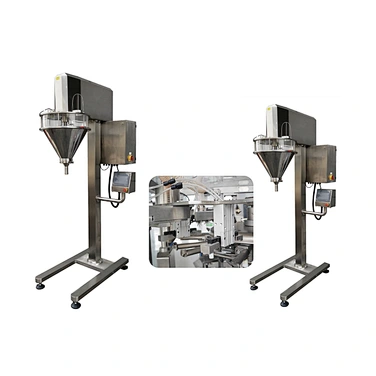

MFP-W1 Auger filler unit(Weighing main & assist filling)
This series of auger fillers unit is composed of a large auger filler, a set of bag clamping weighing mechanism and a small auger filler, which can complete the main filling, weighing and supplementary filling. It is suitable for powder and granular materials which are easy to flow or very poor in fluidity with high-precision packaging requirements. like coffee powder, wheat flour, condiment, solid drink, veterinary drugs, dextrose, pharmaceuticals, powder additive, talcum powder agriculture pesticide, dyestuff, and so on.
Quantity :
Main features
- Dual fillers, Main filling, bag clamping & weighing and supplementary filling ensure high canning accuracy.
- Stainless steel structure; Quick disconnecting or split hopper could be washed easily without tools.
- Servo motor drive screw.
- PLC & touch screen make it be easy of operation.
- The weighing system with high reaction speed ensures the realization of high packaging speed and high precision.
- Save the parameter of different filling weight for different materials. To save 10 sets at most
- Replacing the auger parts, it is suitable for material from super thin powder to granule.
Technical Parameters
| Model | MFP-W1 |
| Packing weight | 10 -5000g |
| Packing accuracy | 100-500g,≤±1g; 500g-1000g, ≤±2g; ≥1000g, ≤±3-4g |
| Filling speed | 10-25 times per min |
| Power supply | 3P AC208-415V 50/60Hz |
| Compressed air | 6kg/cm² 0.2m³/min |
| Total power | 2.85Kw |
| Total weight | 500kg |
| Hopper Volume | 50L (Main) 25L (Assist) |
