Model No: MFW-BW100

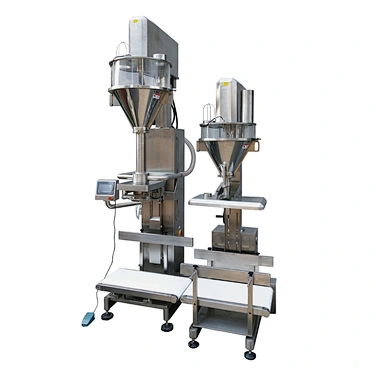

MFW-BW100 Auger filling machine with online weigher(main & assist filling)
The machine is mainly designed for the packing requirements of high precision and high speed of superfine powder which is easy to dust.Main & assist double head filling system. lt is specially suitable for filling additives, carbon powder, dry powder of fire extinguisher, and other fine powder which needs high packing accuracy.
Quantity :
Main features
- Main & assist double head filling system, according to the pre-set weight for fast filling and assist filling, fast filling and assist filling in their own indepen-dent station to ensure high packing accuracy and high packing speed.
- Servo motor of the main filler does up-down work driving with tray and clamper, the up-down rate can be set randomly, no dust spouts out when fling.
- The conveyor belt of assist filler is installed on the load cell. According to the actual weighing of the main filling weight and the target weight,supplement the missing weight.
- With servo motor and servo drive controlled auger, perform stably, and with high accuracy.
- PLC control, touch screen display, easy to operate.
- Made of stainless steel, split hopper, easily to be cleaned.
Technical Parameters
| Model | MFW-BW100 |
| Packing weight | 1kg -25kg |
| Packing accuracy | 1-20kg, ≤±0.1-0.2%, > 20kg, ≤±0.1% |
| Filling speed | 3.5-5 time per min |
| Power supply | 3P AC208 -415V 50/60Hz |
| Compressed air | 6kg/cm² 0.1m³/min |
| Total power | 5.7Kw |
| Total weight | 800kg |
| Overall dimension | 1875×1125×3230mm |
| Hopper Volume | 100 L (Main) 50L (Assist) |
