Model No: MFS-W

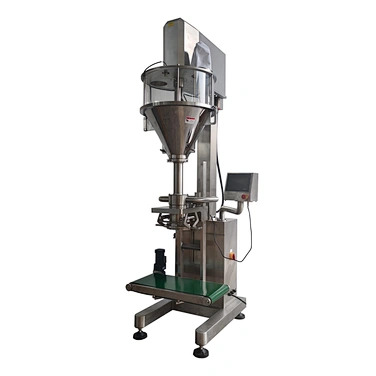

Auger filling machine with online weigher

This series packing machines can handle weighing, filling functions etc. Featured with real-time weighing and filling design these machine can be used to pack high accuracy required, with uneven density, free flowing or non free flowing powder or small granule.l.e. Protein powder, food additive, solid beverage, sugar, toner, veterinary and carbon powder etc.

Quantity :

add to cart

Contact Now

Main features

Stainless steel structure;Quick disconnecting or split hopper could be washed easily without tools.
Servo motor drive screw.
Pneumatic bag clamper and platform equip with load cell to handle two speeds filling as per preset weight.Featured with high speed and accuracy weighing system.
PLC control, touch screen display, easy to operate.
Two filling modes can be inter-changeable,fill by volume or fill by weight.Fill by volume featured with high speed but low accuracy.Fill by weight featured with high accuracy but low speed.
Save the parameter of different filling weight for different materials.To save 10 sets at most.
Replacing the auger parts, it is suitable for material from super thin powder to granule.

Technical Parameters

Model	MFS-W25	MFS-W50	MFS-W75	MFS-W100
Packing weight	1g-900g	10g-5000g	100g-10kg	1kg-25kg
Packing accuracy	<100g, ≤±1-2%; 100-900g, ≤±1-2g;	100-1000g, ≤±2g; ≥1000g, ≤±0.1-0.2%	100-1000g, ≤±2g; ≥1000g, ≤±0.1-0.2%	1-20kg, ≤±0.1-0.2%, >20kg, ≤±0.05-0.1%
Filling speed	8-15 times/min	5-12 times/min	3-8 times/min	2-6 times/min
Power supply	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz
Compressed air	6kg/cm³ 0.1cbm/min	6kg/cm³ 0.1cbm/min	6kg/cm³ 0.1cbm/min	6kg/cm³ 0.1cbm/min
Total power	0.93Kw	1.4Kw	2.25Kw	2.87Kw
Total weight	130kg	260kg	350kg	450kg
Overall dimension	800×790×1900mm	1200×900×2200mm	1205×1010×2350mm	1125×975×2500mm
Hopper Volume	25 L	50 L	75 L	100L
