Model No: MF-BBU

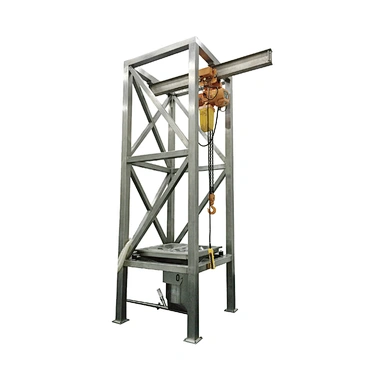

Bulk bag unloader
Unloading weight: 2 Tons
Max.Bag size: 1200×1200×1300mm
Frame Material: Stainless steel
Power Supply: 3 Phase 208-415V 50/60Hz
Total power: 2.0kw
Electric Chain Block Speed:10.05m/min
Lifting Speed: 6.8m/min
Tray material: Stainless steel 304
Anti-bridge mode: Vibrating or slapping
Machine weight: 600kg
Machine size: 2680×1600×4500mm
Max.Bag size: 1200×1200×1300mm
Frame Material: Stainless steel
Power Supply: 3 Phase 208-415V 50/60Hz
Total power: 2.0kw
Electric Chain Block Speed:10.05m/min
Lifting Speed: 6.8m/min
Tray material: Stainless steel 304
Anti-bridge mode: Vibrating or slapping
Machine weight: 600kg
Machine size: 2680×1600×4500mm
Quantity :
Main features
- The ton bag is lifted to the discharge port by electric hoist, and the discharge port under the tonnage bag is opened manually, The materia in the ton bag falls into the hopper by its own gravity, and can be driven to discharge through the vibrator. This operation is simple and convenient.
- Main components: equipment bracket, electric hoist, ton bag hanger, tray.Vibration device.
- Discharge outlet can be connected: screw conveyor, vacuum feeder, silo and other equipment.
