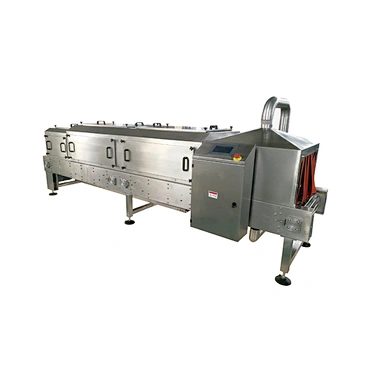

MF-BUV Bag Sterilizing Machine

Main features

• This machine is composed of 5 segments: 1.Blowing and cleaning, 2-3-4 Ultraviolet sterilization, 5.Transition
• Blow & cleaning: designed with 8 air outlets, 3 on top and 3 at bottom, each on the 2 sides, and equipped with blowing machine.
• Ultraviolet sterilization: each segment contains 8 pieces Ouartz ultraviolet germicidal lamps, 3 on top and 3 at bottom, and each on the 2 sides.
• Through uniformly distributed stainless steel strips mounted on stainless steel chains, the bag moves smoothly. Through the intermediate transition sprocket, is divided into front and back parts, so that the place covered by the connecting rod is staggered, and the surface of the bag can be irradiated by ultraviolet rays.
• Two curtains are used at the entrance and exit of the whole sterilization system to effectively isolate ultraviolet rays in the sterilization channel.
• The main body of the machine is stainless steel, and the transmission shaft is stainless steel.
