Model No: MFF

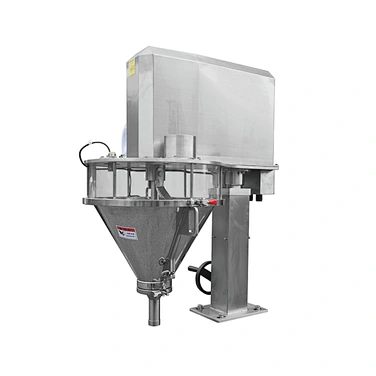

MFF Auger filler
This type can do dosing and filling work. Due to the special professional design, it is suitable for the fluidity or low-fluidity materials, like milk powder, Albumen powder, rice powder coffee powder, solid drink, condiment, white sugar, dextrose food additive, fodder, pharmaceuticals, agriculture pesticide, and so on.
Quantity :
Main features
- The split hopper could be washed easily without tools.
- Servo motor drive screw.
- Stainless steel structure, Contact parts SS304.
- Equipped with height adjusting handwheel, it is convenient to adjust the height of the whole machine.
- Replacing the auger parts, it is suitable for material from super thin powder to granule.
Technical Parameters
| Model | MFF-11S | MFF-25S | MFF-50S | MFF-75S/T |
| Hopper | Split hopper 11L | Split hopper 25L | Split hopper 50L | Split hopper 75L |
| Packing weight | 0.5 -20g | 1-200g | 10-2000g | 10-5000g |
| Packing accuracy | 0.5-5g, ≤±3-5%; 5-20g, ≤±2% | 1-10g, ≤±3-5%; 10-100g, ≤±2%; 100-200g, ≤±1% | <100g,<±2%; 100~500g,<±1%; >500g,<±0.5% | <100g,<±2%; 100~500g,<±1%; >500g,<±0.5% |
| Filling speed | 40-80 times/min | 40-80 times/min | 20-60 times/min | 10-30 times/min |
| Power supply | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz |
| Total power | 0.95Kw | 1.2Kw | 1.9Kw | 3.75Kw |
| Total weight | 100kg | 140kg | 220kg | 280kg/380kg |
| Overall dimension | 561×387×851mm | 648×506×1025mm | 878×613×1227mm | 1141×834×1304mm |
