Model No: MFF-H

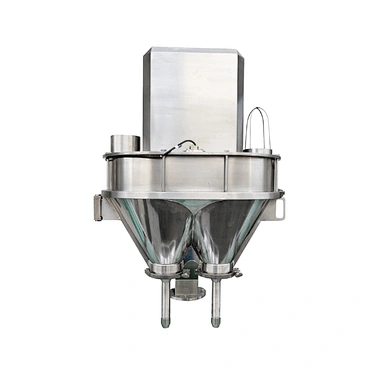

MFF-H Auger filler
Quantity :
Main features
- The split or quick disconnecting hopper could be washed easily without tools.
- Servo motor drive screw.
- Stainless steel structure, Contact parts SS304.
- Equipped with height adjusting handwheel, it is convenient to adjust the height of the whole machine.
- Replacing the auger parts, it is suitable for material from super thin powder to granule.
Technical Parameters
| Model | MFF-H(2-8)-D(60-120) | MFF-H(2-4)-D(120-200) | MFF-H2-D(200-300) |
| Filler quantity | 2-8口 | 2-4口 | 2口 |
| Distance between mouth | 60-120mm | 120-200mm | 200-300mm |
| Packing weight | 0.5-5g, ≤±3-5%; 5-20g, ≤±2% | 1-10g, ≤±3-5%; 10-100g, ≤±2%; 100-200g, ≤±1% | <100g,<±2%; 100~500g,<±1%; >500g,<±0.5% |
| Packing accuracy | 0.5-5g,<±3-5%; 5-30g, <±2% | 1-10g, ≤±3-5%; 10-100g, ≤±2%; 100-200g, ≤±1% | <100g,<±2%; 100~500g, <±1%; >500g,<±0.5% |
| Filing speed | 30-50 times/min/mouth | 30-50 times/min/mouth | 30-50 times/min/mouth |
| Power supply | 3P AC208-415V 50/60HZ | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60HZ |
| Total power | 1-6.75KW | 1.9-6.75 Kw | 1.9-7.5 Kw |
| Total weight | 120-500kg | 150-500kg | 350-500kg |
