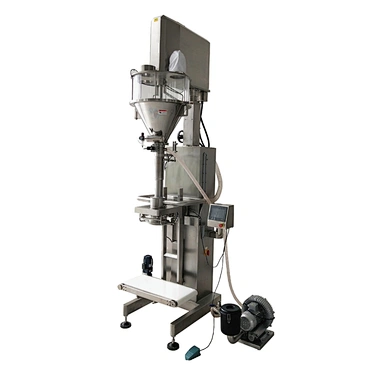

Model MFW-BD Degassing Auger filling machine with online weigher

Main features

• Pneumatic bag clamper and platform equip with load cell to handle two speeds filling as per preset weight. Featured with high speed and accuracy weighing system to guarantee the high packaging accuracy.
• Servo motor does up-down work driving with tray together, the up-down rate can be set randomly, no dust spouts out when filling.
• The filling screw tube with stainless steel sintering screen filter interlayer, combined with vacuum pump, can realize the degassing of powder, reduce the air content in powder and reduce the volume of powder.
• The back blowing device of the compressed air case back blows the filter screen to prevent the filter screen from being blocked by materials for a long time, which makes the degassing effect of the machine worse.
• There is a filtering device in front of the intake pipe of the vacuum pump to prevent products from entering the vacuum pump directly and damaging the vacuum pump.
• With servo motor and servo drive controlled auger, perform stably, and with high accuracy.The power of the servo motor is increased, and a planetary reducer is added to prevent the servo motor from being overloaded due to the increased resistance of the material degassing screw rotation.

Technical Parameters
