Model No: MF8

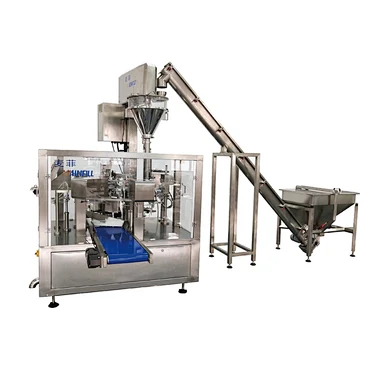

Premade Pouch Packing Machine
MF8 Premade pouch packaging machine (integrated adjustment type) is a new generation of self-developed packaging equipment. After years of testing and improvement, it has become a fully automatic packaging equipment with stable properties and usability. The mechanical performance of the packaging is stable, and the packaging size can be adjusted automatically by one key.
Quantity :
Main features
- Dual fillers, Main filling, bag clamping & weighing and supplementary filling ensure high canning accuracy.
- Stainless steel structure; Quick disconnecting or split hopper could be washed easily without tools.
- Servo motor drive screw.
- PLC & touch screen make it be easy of operation.
- The weighing system with high reaction speed ensures the realization of high packaging speed and high precision.
- Save the parameter of different filling weight for different materials. To save 10 sets at most
- Replacing the auger parts, it is suitable for material from super thin powder to granule.
Technical Parameters
| Model | MF8-230 | MF8-300 |
| Working position | Eight-working position | Eight-working position |
| Bag material | Stand-up bag/with zipper, with hand bag, flat bag etc. | Stand-up bag/with zipper, with hand bag, flat bag etc. |
| Bag size | W:90~230mm L:100~400mm | W:160~300mm L:200~500mm |
| Filling weight | 5~1500g | 100~3000g |
| Packing speed | 20~50 bmp | 12~30 bmp |
| Packing accuracy | ≤100g, ≤±2%; 100 -500g, ≤±1%; >500g, ≤±0.5% | 100-500g, ≤±1%; >500g, ≤±0.5% |
| Total weight | 1500kg | 2000kg |
| Overall dimension | 2070×1630×1460mm | 2274×1820×1520mm |
| Total power | 4.5kw | 4.5kw |
| Power supply | 3P 380V 50Hz | 3P 380V 50Hz |
| Air Consumption | 6 kg/cm² 0.4m³/min | 6 kg/cm² 0.4m³/min |
