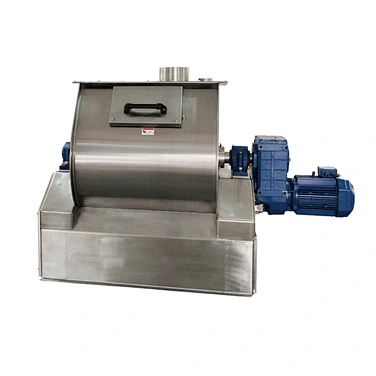

Single shaft paddle / ribbon mixer

Main features

• Good mixing uniformity and high production efficiency
  The single-layer blade rotor structure makes the materials mix efficiently. The CV value of mixing uniformity of general materials in 90s-180s is less than5%, which improves the production efficiency.
• Low residue rate
  Compared with other mixing chambers, such as W-shaped and U-shaped mixing chambers, the residual rate is lower.
  The length of the discharge port and mixing chamber of the mixer is the same as that of the miding chamber, and the openimg width of the mixer is optimized to make the discharging quick and clean and reduce the residual rate;
  The mixing bin is fully welded and polished without any fasteners such as screws and nuts, which reduces the residual rate and is easy to clean.
• Assembled and welded casina improves the rigidity of the whole machine
  The sealing performance is improved and the rigidity of the whole machine is increased by adopting the structure of assembled welding body;
  Both sides of the discharge door are equipped wih opening and closin drivina devices, and the end of the door is equipped with a fastening drve device, and the rigidity of the door body is strengthened, which improves the support rigidity and workind stability of the discharge door, and ensures that there is no material leakage when the discharge door is closed.
• New shaft end sealing structure, good sealing effect
  The shaft end seal adopts a special gas seal. There is no friction between the rotating shaft and the sealing ring to ensure no leakage and no pollution of the mixture. The sealing ring does not need to be replaced for many years.
• Man machine safety, easy cleaning and maintenance
  Safety interlock switch is set outside the cleaning door, which has high safety and ensures the safety of operators.
• Beautiful atmosphere
  In addition to the bearing seat, other parts of the machine are made of stainless steel, which is beautiful and elegant.

Technical Parameters
